Mini 4WD Mass Damper Placement Guide
Mass damper placement decides whether your car settles or bounces. Front, centre and rear positions, weight choices and how to test each change.
Click to zoom

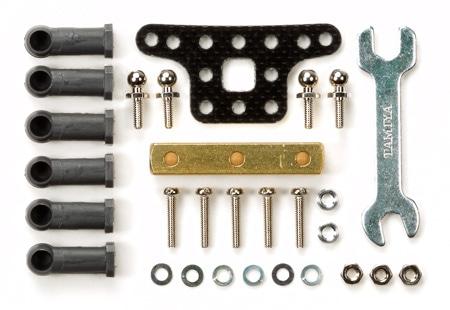

Tamiya Mass Damper Set w/Ball Connectors (Block Weight)(15478)
USD6.08
USD4.86
Save 20%
Out Of Stock
This product is currently unavailable.
Browse available alternatives
Secure checkout — card or Malaysian online banking.
Ships worldwide from Malaysia — fast delivery.
Description
A mass damper set built around ball-and-socket connectors rather than a fixed link, letting the weight articulate more freely to help keep a Mini 4WD's wheels in contact with an uneven or undulating circuit. The damper itself is a 6x6x32mm block, and it mounts low on the chassis via the included FRP plate, helping keep the car's overall center of gravity down. Tamiya lists it as fitting FM-A, Super-II, Super X, Super XX, Super TZ-X, VS, MS, AR, MA, VZ and ME Chassis cars, though on that same range of chassis the manufacturer's own fitment notes call for pairing it with the separately sold Grade-Up Parts No. 15430, and some bodies may need modification to clear the low-mounted block. Ball-connector mass dampers like this one are generally favoured for rougher, jump-heavy circuits, where the extra freedom of movement lets the weight react to landing impacts rather than transmitting them straight into the chassis.
- 6x6x32mm block mass damper
- Ball-connector mounting for freer articulation
- FRP mounting plate included
- Low-mounted for a lower center of gravity
- Pairs with Grade-Up Parts No. 15430 on several chassis
