Mini 4WD Tuned Motors: Torque, Atomic and Rev Compared
Torque-Tuned 2, Atomic-Tuned 2 and Rev-Tuned 2 are the first published upgrades: RPM, torque and current, and which course type each is built for.
Click to zoom

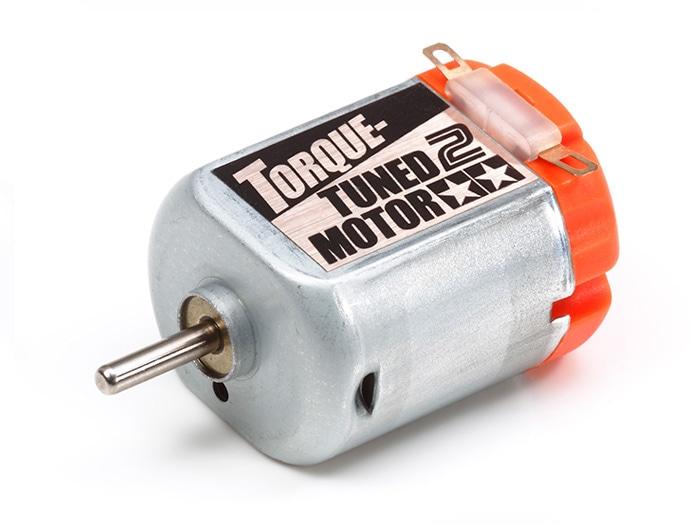

Tamiya Torque-Tuned 2 Motor(15484)
USD4.28
USD3.85
Save 10%
In stock
Secure checkout — card or Malaysian online banking.
Ships worldwide from Malaysia — fast delivery.
Description
Part of Tamiya's second-generation Tuned Motor line-up, the Torque-Tuned 2 is set up for strong acceleration and minimal speed loss through slopes and corners, making it a good match for technical, tightly-cornered circuits rather than long straights. A pinion gear is not included and must be fitted separately. It is the non-PRO counterpart to the Torque-Tuned 2 Motor PRO: this standard version is tagged for Mini 4WD cars (excluding Mini 4WD PRO) and Dangun Racers, across chassis from Type 3 through Super TZ-X, VS, AR and VZ, while the PRO version is built specifically for MS, MA and ME Chassis cars and runs a slightly higher torque band. Within Tamiya's own published figures the two are close but not identical, so the standard Torque-Tuned 2 should not be swapped onto a PRO chassis expecting identical output.
- Input voltage: 2.4-3.0V
- Torque at recommended load: 1.6-2.0mN·m
- RPM: 12,300-14,700
- Current consumption: 1.7-2.0A
- Compatible: Mini 4WD cars (excl. Mini 4WD PRO), Dangun Racers
- Pinion gear required, sold separately
