QWK Challenger MK3 & Edge Spare Parts Guide
The QWK Challenger MK3 and QWK Edge are two sibling lines from the QWK brand, and this guide is written for people who already own one — Monkee Mods currently stocks spare and upgrade parts for both, not complete blaster units.
Platform notes: "MK3," "MK3 Pro" and "MK3 Pro Max" are spec tiers of one Challenger MK3 platform rather than separate blasters. The original Standard Edition ran around 120 FPS on a nylon gearbox shell with a single magazine, while the Pro Edition stepped up to a CNC aluminium gearbox, a neodymium motor, bolt-lock-on-empty-magazine, a wireless remote disable module and around 160 FPS out of the box. Edge is a distinct sibling line under the same QWK brand — the two share at least one component, the replacement micro-switch below, though it does a different job on each: a bolt-release latch on MK3 Pro/Pro Max, a motor-brake switch on Edge.
Available Monkee Mods parts for this platform
| Part | Platform | Why you'd want it |
|---|---|---|

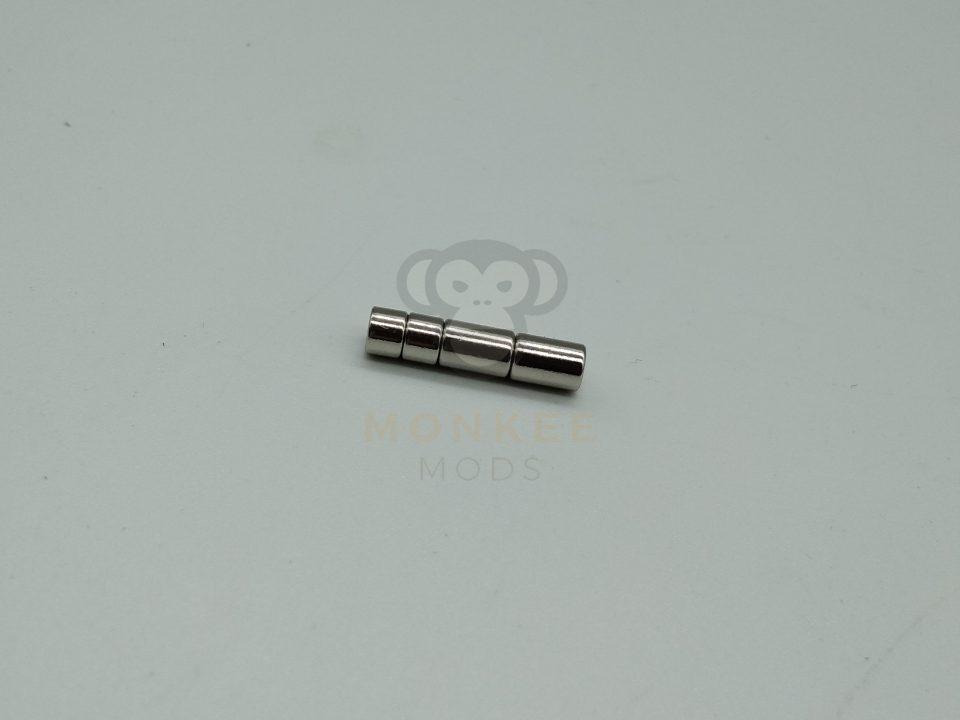

| QWK x MM Challenger Mk3 Dart Corrector Magnets | Challenger MK3 | Replacement magnets for the spring-loaded Active Dart Corrector, which uses magnetic repulsion to hold dart orientation before the breech feeds it. |
| Challenger Mk3 Piston Assembly & MK3 Pro 12KG Spring | Challenger MK3 | Service parts for the piston and Pro-tier spring, listed together on the MK3 parts category. |
| Replacement Micro Switch for QWK Challenger MK3 Pro/Max and Edge | MK3 Pro, MK3 Pro Max, Edge | The one part confirmed to fit across both lines, though its function differs by platform — confirm which switch role you're replacing before ordering. |
| QWK Edge Motor and Chipboard Set | Edge | A plug-and-play motor and chipboard replacement; no soldering required, though motor height may need adjusting on install. |
Recommended mods & why
- Confirm your exact tier before ordering a spring or gearbox part. Standard, Pro and Pro Max have different internals, so a Pro-spec spring is not necessarily right for a Standard Edition build.
- Don't assume the micro-switch is a drop-in swap across platforms. It's the same physical part number on MK3 Pro/Pro Max and Edge, but it performs a different job on each, so double-check which function you're restoring.
- Keep the dart corrector magnets on hand as routine maintenance. They're a small, inexpensive part that's easy to lose during a strip-down.
Sources
- QWK Challenger MK3 — current Monkee Mods category
- QWK Edge — current Monkee Mods category
- QWK Hardware and Electronics — current Monkee Mods parts category
- Blaster Review: QWK Challenger MK3 Pro — original FPS and spec breakdown
- QWK Challenger Mk3's Proprietary Magazine — magazine format explained
- QWK Challenger MK3 Nerf AEG — Standard vs Pro Edition comparison
